Assess your space and workflow

Before you drill a single hole, spend an hour measuring and thinking. A successful home workshop is not about cramming in every tool; it is about arranging what you have so that work flows without twisting, reaching or tripping. Start by noting the room’s dimensions, ceiling height, door swings and window positions. Divide the space into zones: a dirty zone for grinding, welding and sanding; a clean zone for measuring, assembly and inspection; and a storage zone for tools and stock. Keep the clean zone as far from dust and swarf as possible, ideally behind a curtain or partition. Aim for at least 800 mm of clear walkway between benches and machines. Position your main bench so you work with natural light coming from your side, not from behind or directly in front, which causes glare and shadows.

Build a bench that suits your work

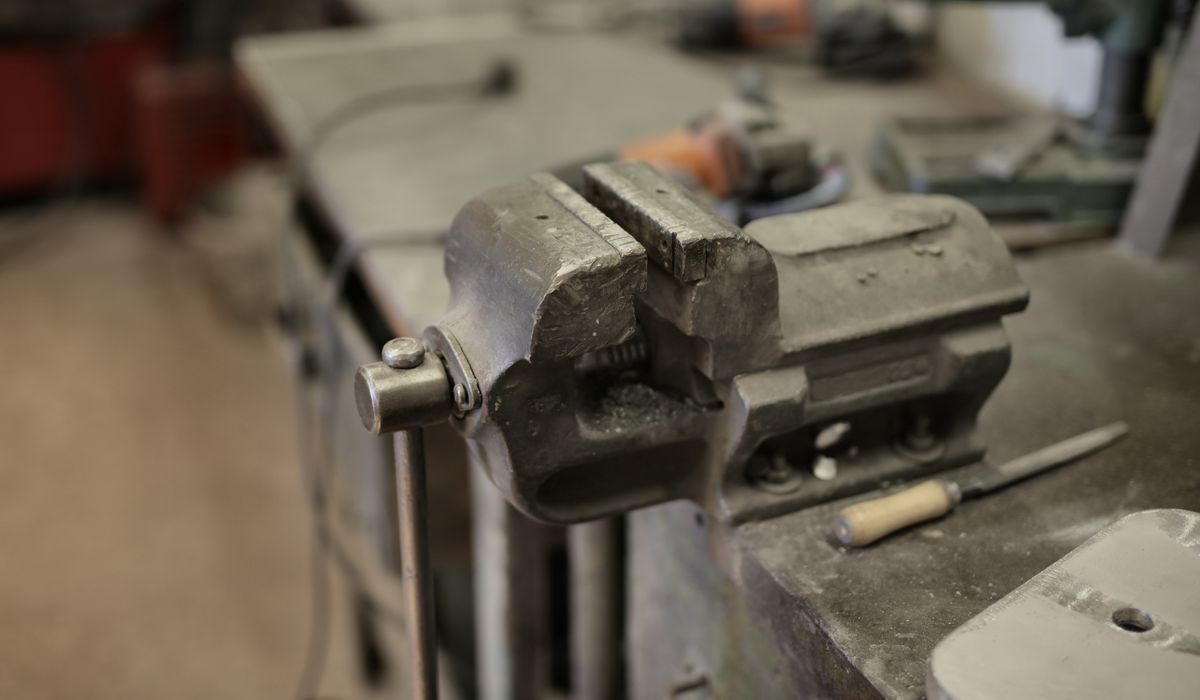

The workbench is the heart of the workshop. For general engineering, a standing height of 900–950 mm suits most people; for precision work such as filing or tapping, raise it to 1000–1100 mm so the work comes closer to your eyes. If you prefer to sit, 700–750 mm is comfortable. Make the top from at least 50 mm of solid timber or a steel plate, and bolt the frame to the wall or floor to stop it shifting when you push a vice. Fit a good quality vice with 100–150 mm jaws, mounted so the top of the jaws sits at your elbow height when standing. Add bench dogs, hold-downs and a few clamps for awkward shapes. A lower assembly bench at 750 mm is useful for heavier items, and a shelf underneath keeps heavy tooling off the floor.

Light your work properly

Good lighting is not a luxury; it prevents mistakes and eye strain. Aim for around 500 lux of general light at bench level, with adjustable task lighting delivering 750–1000 lux where you are cutting, measuring or soldering. Choose LED battens with a colour temperature of 4000–5000 K and a colour rendering index (CRI) above 90 so colours and markings look true. Avoid a single bright ceiling light that casts your own shadow over the work. Instead, use two or three diffused sources plus an articulated arm lamp for close work. Position local lights so they shine from the side or above, not into your eyes or onto reflective metal. Paint walls and ceiling in light, matt colours to bounce light around, and keep windows clean. For lathes and milling machines, a dedicated machine lamp is essential.

Store tools so they are ready to hand

Storage should reduce movement and keep floors clear. Use shadow boards for frequently used hand tools: spanners, screwdrivers, pliers and hammers all have a marked home. French cleats let you rearrange holders as your toolkit grows. Label every drawer and bin — clear plastic bins for fasteners, small parts and fixings work well. Keep heavy items such as vices, chucks and stock low down, and light items high up. A mobile tool chest with ball-bearing slides is ideal for keeping measuring instruments clean and secure. Run cables overhead or on retractable reels so they never trail across the floor. Store raw material vertically in a rack or horizontally on a low shelf, and keep a separate bin for offcuts. The test is simple: if you have to move something to reach a tool, it is stored in the wrong place.

Sort power, ventilation and safety

Electrical safety is non-negotiable. Protect all sockets with a 30 mA RCD, and fit enough outlets so you never need extension leads across walkways. A master isolating switch near the door lets you cut power quickly. Provide a clearly marked emergency stop for fixed machines. Keep a CO2 extinguisher for electrical fires, a dry powder extinguisher, and a fire blanket. A first aid kit and eye wash station should be visible and stocked. Ventilation matters for soldering, welding, painting and running engines. Use a flexible extractor arm or a fan that pulls fumes away from your breathing zone, and never rely on an open window alone. Store flammable liquids in a metal cabinet, and keep a suitable CO2 or foam extinguisher nearby. Finally, fit machine guards, use push sticks, and never wear loose clothing or gloves near rotating parts.

Stay efficient every day

An efficient workshop stays safe and productive through small habits. Adopt a simple 5S routine: sort what you need, set it in order, shine the workspace, standardise your storage, and sustain the discipline. Spend ten minutes at the end of each session putting tools away and sweeping up swarf. Keep a notebook or whiteboard for project lists and machine maintenance. Oil lathe ways, check belts, and replace worn blades before they cause inaccurate cuts. Comfort matters too: an anti-fatigue mat, a tall stool, and good ventilation keep you fresh. If you feel cramped, remove something — clutter is the enemy of accuracy. With a sensible layout, proper lighting and disciplined storage, a small UK workshop can be as safe and capable as any professional bay.
